The MTX case profile drawings

[stephen_usher]

He could probably do with the profile of the plastic part at the rear of the case as well, given that he's looking to replicate the whole shape.

[Dave]

Wow!

That's brilliant, you've even gotten the interlocking profile like the MTX case - great work

Regards
Dave

[protek]

Thanks! I hope I got the dimension right as the length based on the original linework was 1,3 meters! I took a measure from the case and managed to scale it down to 20,2 centimeters. Still need to make the end plates. I didn't take any references from the plastic profile yet as I figured the end plate would keep it in shape and in the case of the CFX, it leaves the CF card accessible.

If someone has access to 3D printer, I can send the files so that you can try it out.

[Dave]

I have a (cheap) 3D printer, so I could give it a go

regards
Dave

[protek]

PM me your email and preferred format, so I'll send you the files.

[1024MAK]

Here we go:

Like!

Mark

[protek]

Here's the side plate. I also made one without the expansion slot.

[protek]

And the back plate:

[Dave]

Hi Guys,

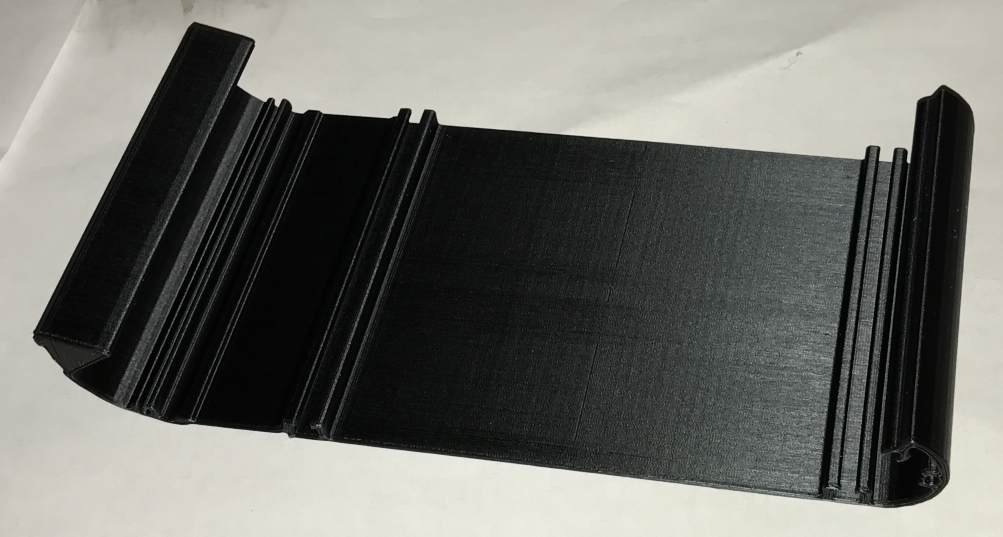

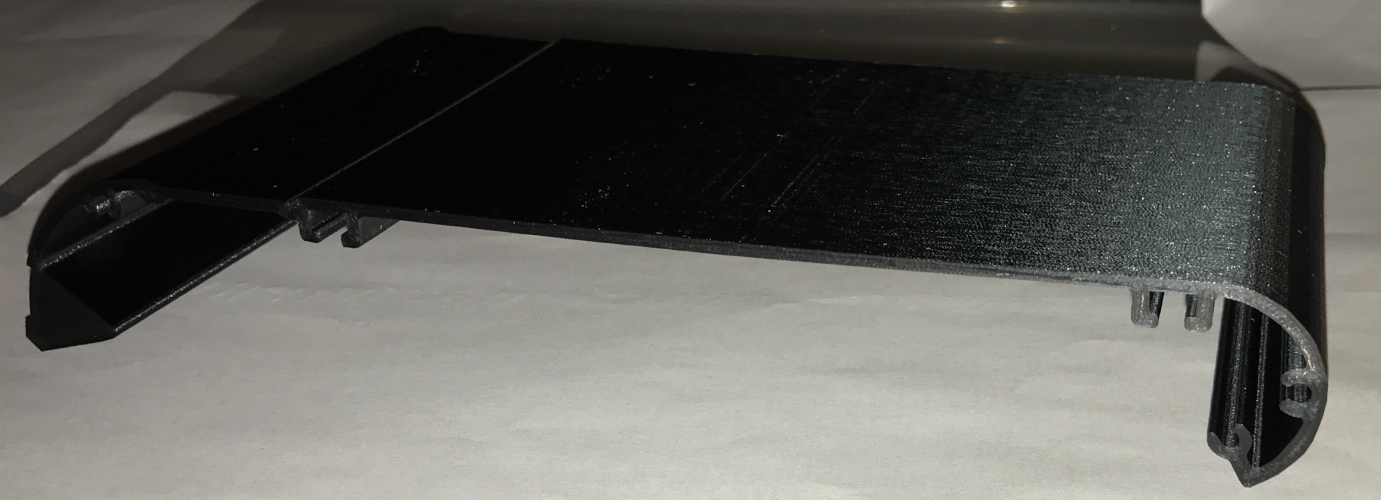

I have had a go at printing the top half of the case, my printer is not the fastest in the world and the top half was projected to take 20 hours to print!

I left it running overnight and it wasn't finished when I had to leave the house this morning. I was out most of the day and just got back - half expecting the print to have failed, but, lo and behold - it had finished and looked REALLY good! - Well done Tero!

A couple of quick photos attached - apologies for the poor quality, but it was late.

Next step is to print the base - the software is predicting that that will "only" take 14 hours - so, more news "soon".



regards
Dave

[protek]

Wow! That looks awesome!

How does it line up dimension-wise with the memotech case?
